    Micro Double-Ended Cordset – 0.5M

    Original price was: $68.00.Current price is: $40.12.

    SKU: bfpp3t9 Category: 100% Secure Payment Easy Returns & Replacement Free Shipping On Orders Over $50.

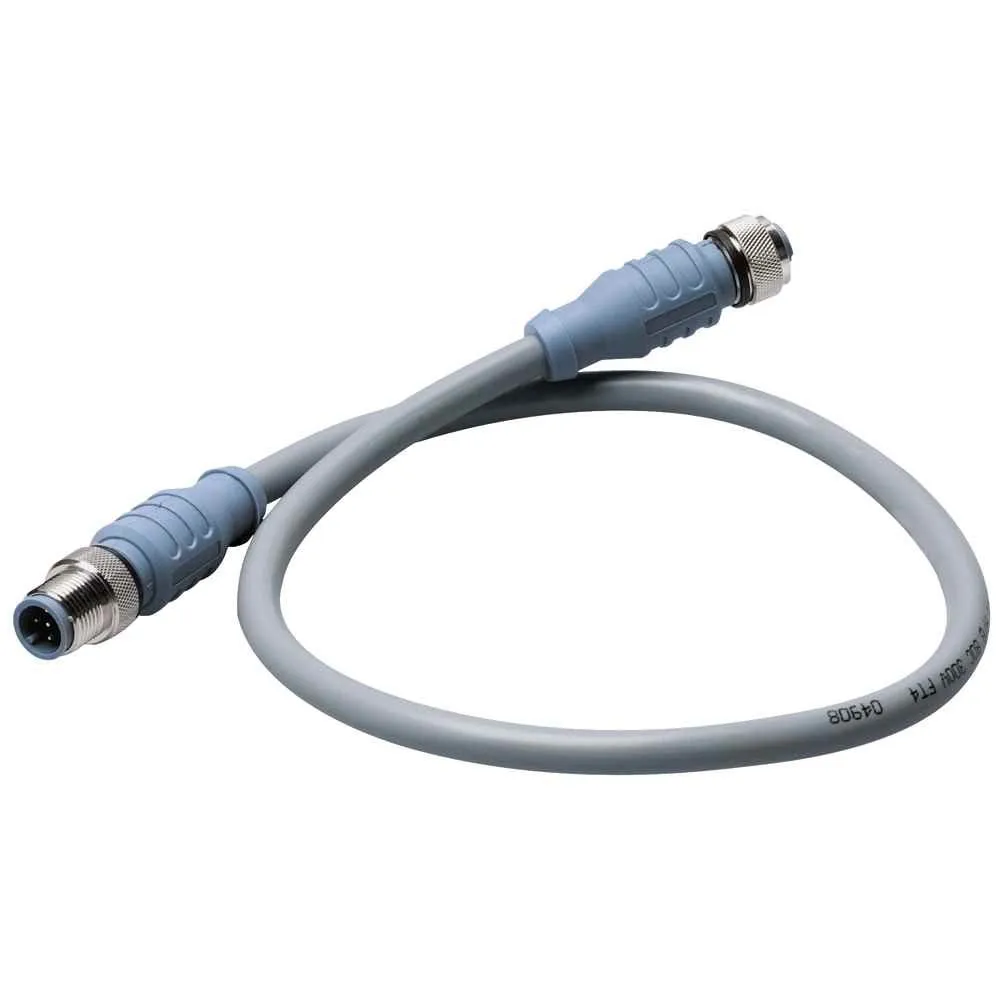

    Micro Double-Ended Cordset – 0.5M

    Mechanical

    • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
    • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
    • Contact Mat/Plating: Brass/Gold
    • Coupling Nut Mat/Plating: Brass/Nickel
    • Connector Outside Diameter: 0.59″ Electrical
    • Current Rating: 4.0 Amps
    • Voltage Rating: 250 V Cable
    • Outer Jacket Mat/Color: PVC/Gray
    • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
    • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
    • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

    Environmental

    • Protection Class: IEC IP68, NEMA 1,3,4,6P
    • Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
    • (Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
    • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
    • NMEA: NMEA 2000 Approved
