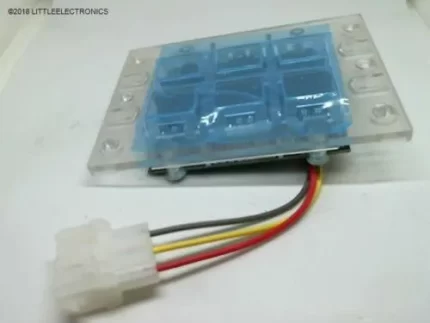

Intellitec 6 Button Multiplex Switch Panel 00-00873-006

Intellitec 6 Button Multiplex Switch Panel 00-00873-006

Can be used in place of the obsolete 00-00874-006

Intellitec’s Programmable Keypads are members of Intellitec’s Programmable Multiplex Control Family, as well as the 160 Channel Multipoint Switching System (RV Multiplex). They work in combination with the 160 Channel IPX Master (00-00837-000) or the PMC CPUs (00-00622-021 or 00-00800-022) and other standard, semi-custom, or custom I/O modules

PMC Input Modules 100 and 110 are members of Intellitec’s Programmable Multiplex Control family.
They work in combination with the PMC CPU and other standard, semi-custom or custom I/O modules.
There are ten input connections for rocker, limit, or sensor switches. Each innavidual input can be
configured as either a switch to ground, or a switch to battery. All input information is directly communicated to the CPU via the PMC communications link. The CPU utilizes this information to control other PMC output modules. All of the output harnesses are connected with AMP Mate-N-Lok connectors to reduce installation time and errors. The approximate module dimensions are 6.375″ X
3.750″ X 1.875″ (16.2mm X 9.5mm X 4.8mm). The module should be installed in a protected environment inside of the vehicle. To reduce wiring and if your panel switches are grouped
together, you may consider using Intellitec’s standard switch adapters, custom adapters or custom switch panels
