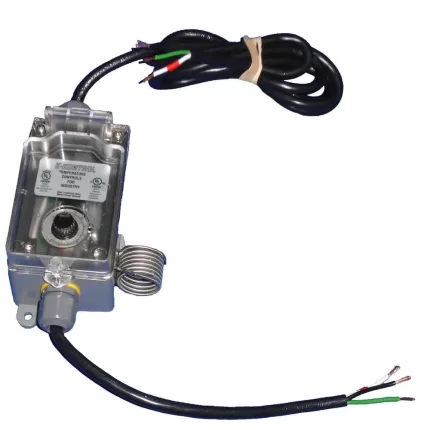

230V Thermostat w/Adjustable Temperature Range
230V Thermostat w/Adjustable Temperature Range Original price was: $217.00.Current price is: $99.00.
Sale

    2312, 150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover

    Original price was: $64.00.Current price is: $37.76.

    SKU: m6wyuab Category: 100% Secure Payment Easy Returns & Replacement Free Shipping On Orders Over $50.

    150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover

    PN:   2312

    • Stud design provides direct terminal to bus contact for low resistant connection
    • Stainless steel studs and screws allow high torquing for excellent electrical contact
    • Tin-plated copper bus for maximum conductivity and resistance to corrosion
    • UL 94-VO rated (self extinguishing) base material resists high heat
    • Press on insulating cover attaches to studs and allows unobstructed wire access
    • Raised bus provides easy access to multiple wires on a single screw
    Continuous Amperage 130 Amperes AC
    150 Amperes DC
    Maximum Voltage Rating 300 Volts AC
    48 Volts DC
    Bus Material Tin-Plated Copper CDA 110/UNS11000
    Base Material Glass Reinforced Polycarbonate
    Cover Material Polycarbonate
    Studs Stainless Steel, 1/4″-20, torque 72 in-lbs, accepts 1/4″ (M6) ring terminal
    Screws Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal
    Weight 0.58Lb

    WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
